ÜRÜN ÖZELLİKLERİ:<\/b>

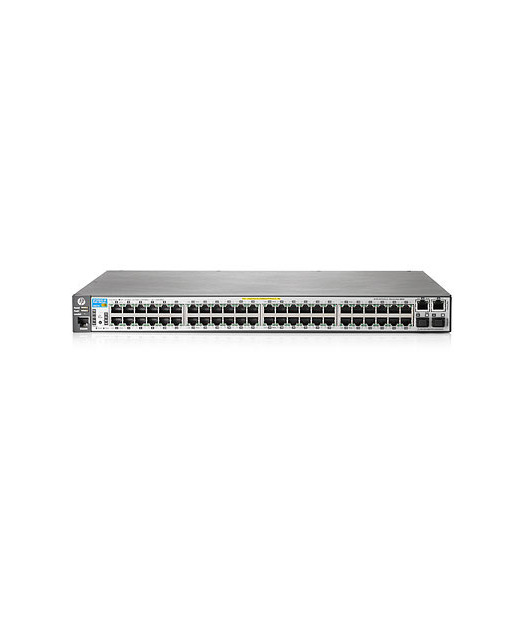

Açıklama: The HP 2620 Switch Series consists of five switches with 10\/100 connectivity. The HP 2620-24 Switch is a fanless switch with quiet operation, making it ideal for deployments in open spaces. The HP 2620-24-PPoE+ Switch, HP 2620-24-PoE+ Switch, and HP 2620-48-PoE+ Switch are IEEE 802.3af- and IEEE 802.3at-compliant switches and provide up to 30 W per powered port. The HP 2620-48 Switch has variable speed fans for quiet operation. All 2620 series switches include two 10\/100\/1000BASE-T ports and two SFP slots for Gigabit Ethernet uplink connectivity. An optional redundant external power supply is also available to provide redundancy in the event of a power supply failure. With IPv4\/IPv6 static and RIP routing, robust security and management features, free lifetime warranty, and free software updates, the HP 2620 Switch Series is a cost-effective solution for customers who are building converged enterprise edge networks.
Quality of Service (QoS)<\/b>
\\n• Layer 4 prioritization: enables prioritization based on TCP\/UDP port numbers
\\nConnectivity<\/b>
\\n• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10\/100 and 10\/100\/1000 ports
\\nResiliency and high availability<\/b>
\\n• External redundant power supply: provides high reliability
\\nManageability<\/b>
\\n• Dual flash images: provides independent primary and secondary operating system files for backup while upgrading
\\nLayer 2 switching<\/b>
\\n• VLANs: provide support for 512 VLANs and 4,094 VLAN IDs
\\nLayer 3 routing<\/b>
\\n• Static IP routing: provides manually configured routing; includes ECMP capability
\\nSecurity<\/b>
\\n• Access control lists (ACLs): provide IP Layer 3 filtering based on source\/destination IP address\/subnet and source\/destination TCP\/UDP port number\\n
Marka: HP
Gigabit Ethernet (bakır) bağlantı noktası sayısı: 1
Konsol girişi: RJ-45
Kurulu SFP modül sayısı: 2
Temel açma kapama RJ-45 Ethernet giriş türü: Fast Ethernet (10\/100)
Temel açma kapama RJ-45 Ethernet giriş sayısı: 48
Tam iki taraflı baskı: Evet
Ağ standartı: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Akış kontrol desteği: Evet
Bağlantı geçidi aynalama: Evet
Bağlantı kümeleme: Evet
Hız limitleme: Evet
DHCP müşteri: Evet
DHCP sunucu: Evet
IGMP aramak: Evet
Auto MDI\/MDI-X: Evet
Ağaç protokolü süresi: Evet
VLAN desteği: Evet
10G desteği: Hayir
Oto hissetme: Evet
Güç tüketimi: 43,5 W
AC girdi frekansı: 50\/60
AC girdi voltajı: 100-240
Isı yayımı: 148 BTU\/s
Ağırlık: 2,94 kg
Yükseklik: 43,9 mm
Genişlik: 443 mm
Derinlik: 254 mm
MAC adres filtreleme: Evet
Bağlantı kontrol listesi (ACL): Evet
SSH\/SSL desteği: Evet
Adres tablosu boyutu: 16000 Kayıt
Yönlendirme\/geçiş kapasitesi: 17,6 Gbit\/s
Maks. Veri transfer hızı: 1 Gbit\/s
Jumbo Frames desteği: Evet
Gecikme (10-100 Mbps): 8,3 µs
Gecikme (1 Gbps): 2,6 µs
İşlem hacmi: 13 Mpps
MIB desteği: Y
Anahtar katmanı: L2
Servis kalitesi (QoS) desteği: Evet
Multicast desteği: Evet
Web-tabanlı yönetim: Evet
Anahtar tipi: Managed network switch
Yönetim protokolleri: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SMON, CLI
Ethernet üzerinden güç desteği (PoE): Hayir
Raf montajı: Evet
