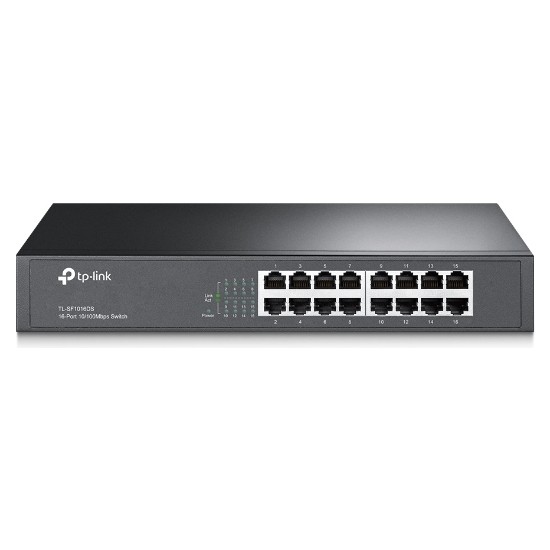

ÖZELLİKLER:
- Innovative energy-efficient technology saves power up to 25%
- Supports IEEE 802.3x flow control for Full Duplex mode and
backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets
at full wire-speed for maximum throughput
- 3.2 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps,
100Mbps hardware.
- Plug and Play design simplifies installation
- Fanless design to make sure it works quietly without disturbing your
family
TEKNİK ÖZELLİKLER:
- Standardlar ve Protokoller IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
- Arabirim 16 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
- Ağ Medyası
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
- Backbound Bant Genişliği 3.2Gbps
- Harici Güç Kaynağı 100-240VAC, 50/60Hz
- LED Göstergeleri Power, Link/Act, 100Mbps
- Boyutlar 11.6×7.1×1.7 in. (294×180×44 mm)
Yazılım Özellikleri
- Temel Fonksiyon
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-
Duplex Mode
- Port Yönlendirme
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
- Transfer Metodu Store-and-Forward
- MAC Adres Tablosu 8k
DİĞERLERİ
- Sertifika FCC, CE
- Ortam Operating Temperature: 0?~40? (32?~104?);
- Storage Temperature: -40?~70? (-40?~158?);
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
